Description

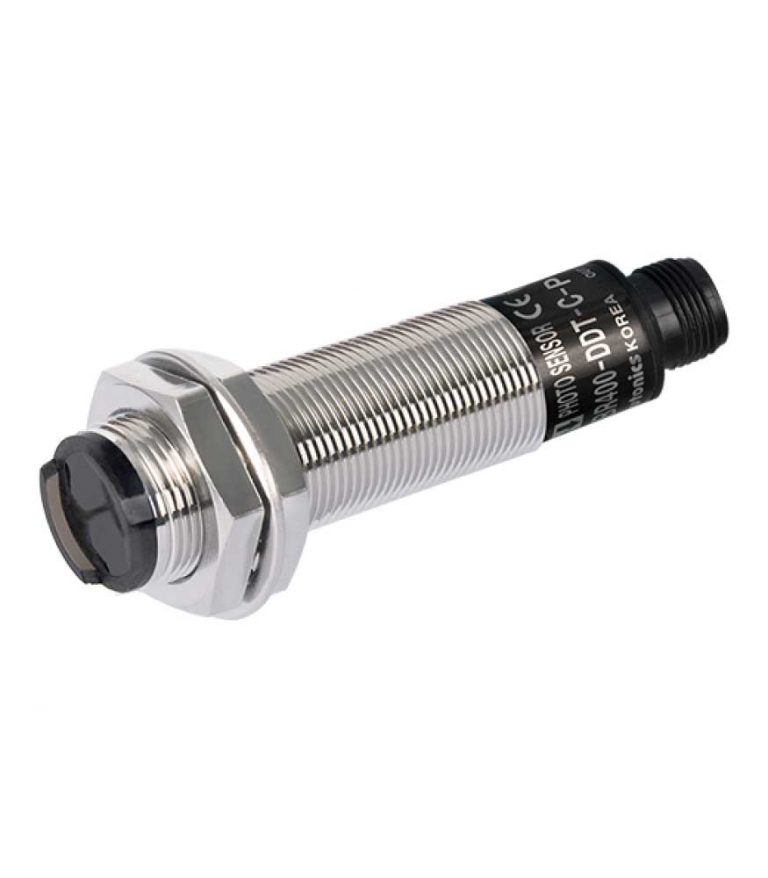

Sensor, Photo, Diffuse Reflective, 18mm Round Brass,400 mm Range, Light & Dark On, PNP Output,…
Sensing type Diffuse reflective type
Sensing distance 400mm
Sensing target Opaque, Translucent material
Light source Infrared LED(850nm)
Response time Max. 1ms
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Max. 45mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Light ON/Dark ON(set by control wire)
Control output PNP open collector
Connection type Connector type(M12)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -10 to 60℃, storage: -25 to 75?
Protection structure IP66
Approval
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance) Max. 20% at rated sensing distance
Material Case – Brass, Ni-plate
Sensing part – Polycarbonate lens
Accessories_Individual Adjuster driver
Accessories_Common fixing nuts, Washer
Weight Approx. 90g(approx. 50g)
