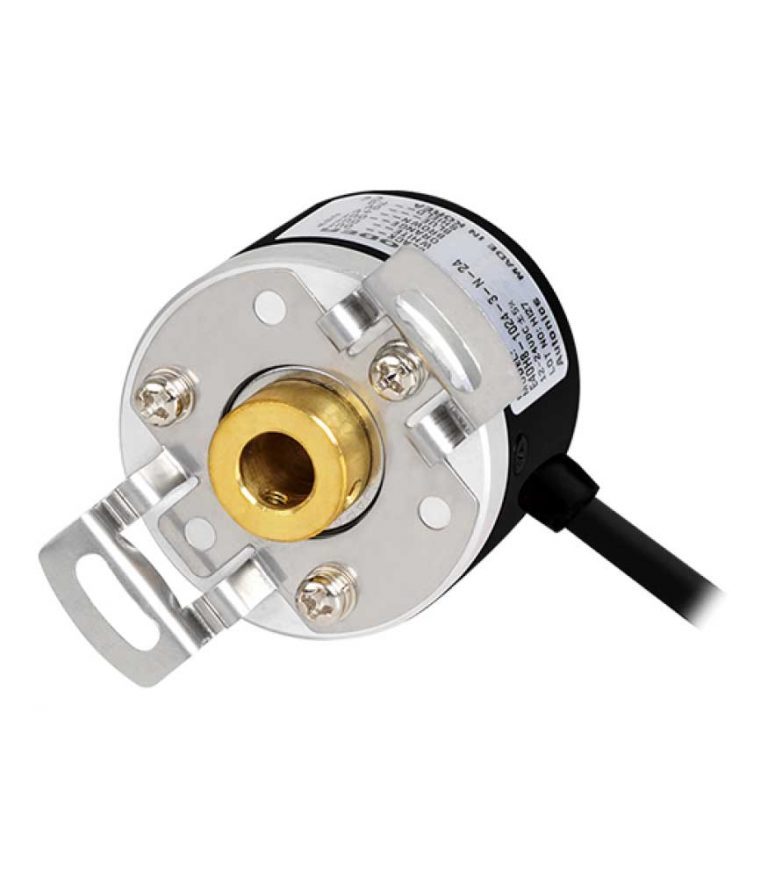

Autonics E40H12-1024-6-L-5 Encoder, Incremental

Encoder, Incremental, Ø40mm, 12mm Hollow Shaft, 1024 PPR, A,A/,B,B/,Z,Z/ Line driver output, 5…

Shaft inner diameter Ø12mm
Max. response frequency 300kHz
Max. allowable revolution 5000rpm
Starting torque Max. 50gf.cm(max. 0.0049N.m)
Resolution 1024P/R
Output phase A, , B, , Z,
Control output Line Driver
Power supply 5VDC ±5%(ripple P-P: max. 5%)
Connection type Radial cable type
Protection structure IP50
Environment_Ambient temperature -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Accessories Bracket
Weight Approx. 120g
