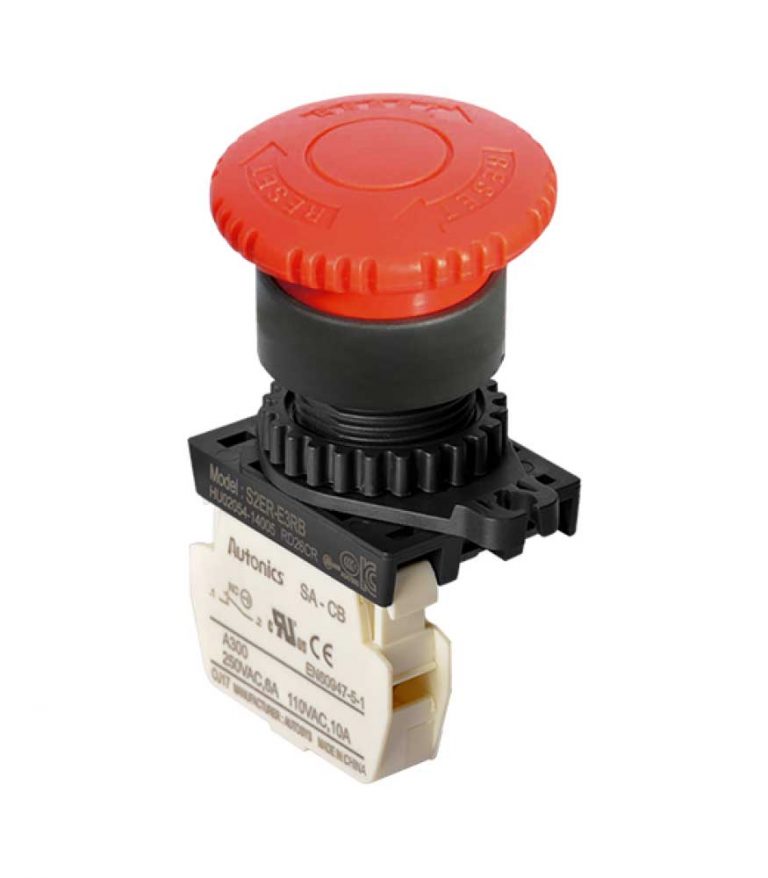

Autonics S2ER-E3RBM Emergency Stops

Emergency Stops Ø22/25, RED, Haed ø40, 1 Normal Close, 110VAC/10A,220VAC/5A

Type of operation : push-lock, flip-reset
Button Type : D40 (short head, no light)
Color : Red
Contact block : B contact 1
Contact block Type : Modular type

Contact block_Electrical specifications Power voltage/current 110VAC~/10A, 250VAC~/6A
Protection structure IP52
Weight_Mounting hole_Ø22/25 Approx. 22.5g
Weight_Case Approx. 7g
Weight_Contact block_Modular A/B contact Approx. 10g
Type of operation push-lock, flip-reset
Button Type D40 (short head, no light)
Color Red
Contact block B contact: 1
Contact block Type Modular type
Ambient temperature -15 – 55℃, storage : -25 – 65
Ambient humidity 35~85% RH, storage 35~85% RH
