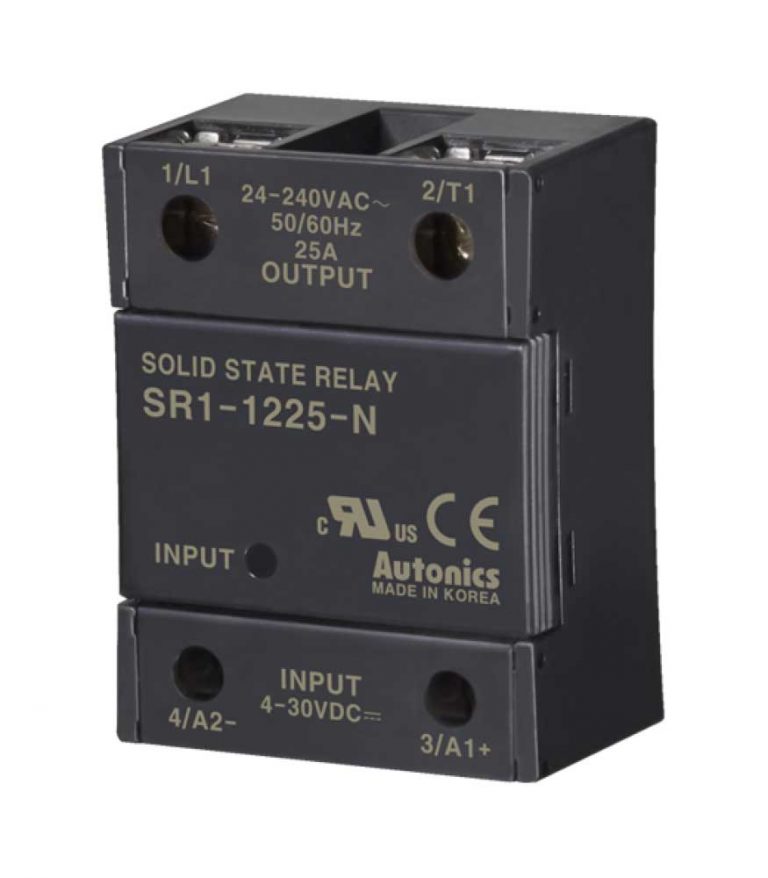

Description
Control phase Single-phase
Mounting type Panel
Rated input voltage 4-30VDC
Rated load voltage 24-240VAC~ (50/60Hz)
Dielectric strength 2500VAC~ 50/60Hz 1 min (Input-Output, Input/Output-Case)
Rated load current 25A
Function Zero cross turn-on
Approval
Environment_Ambient temperature -30 to 80℃(in case of the rated input voltage 90-240VAC~: -20 to 70℃), storage: -30 to 100℃
(The rated load current capacity is diferent depending on ambient temperature. Refer to ‘▣ SSR Derating Curve’.)
Environment_Ambient humidity 45 to 85% RH, storage: 45 to 85% RH
Weight Approx. 111g(approx. 73g)
