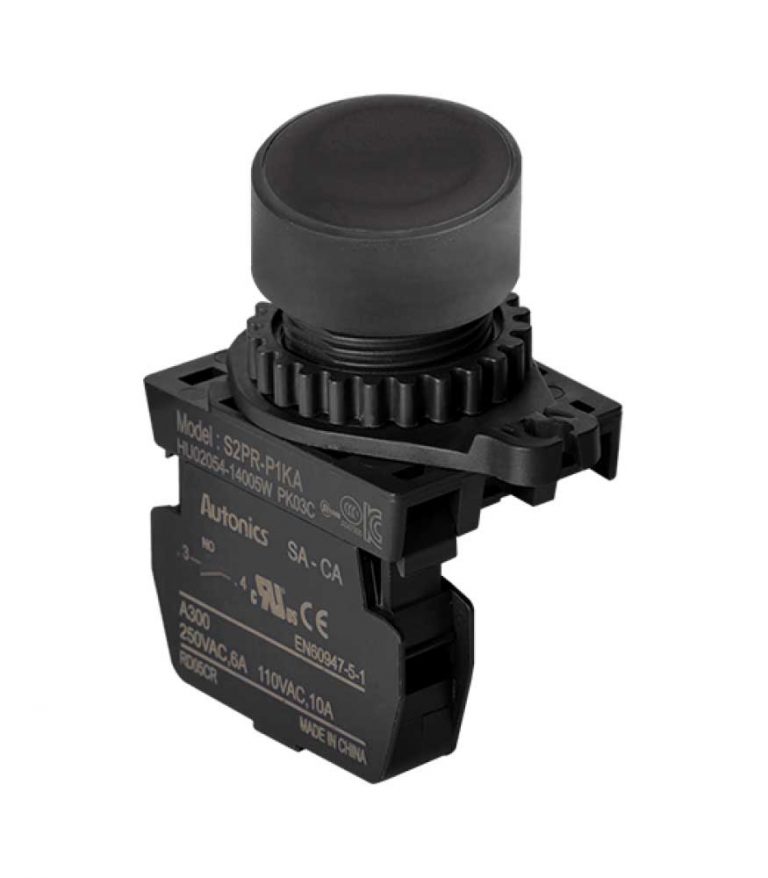

Autonics S2PR-P1KAM Non-Illuminated Push Button (Non-Flush)

Non-Illuminated Push Button (Non-Flush), ø22/25, Black, Normal Open, Modular Type,110VAC/10A,220…

PDF

Contact block_Electrical specification_Power voltage/current 110VAC~/10A, 250VAC~/6A
Protection structure IP52(IP65 protection structure with waterproof cap for Ø22/25 round push button switches)
Approval (LED blocks are except certifications)
Weight_Mounting hole_Ø22/25 Approx. 14.5g
Weight_Housing Approx. 7g
Weight_Contact block_Modular type A/B contact Approx. 10g
Illuminated Non-illuminated
Letter marking None(no printing)
Button type Extended
Color Black
Contact block A contact: 1
Contact block type Modular type
Environment_Ambient temperature -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
