Description

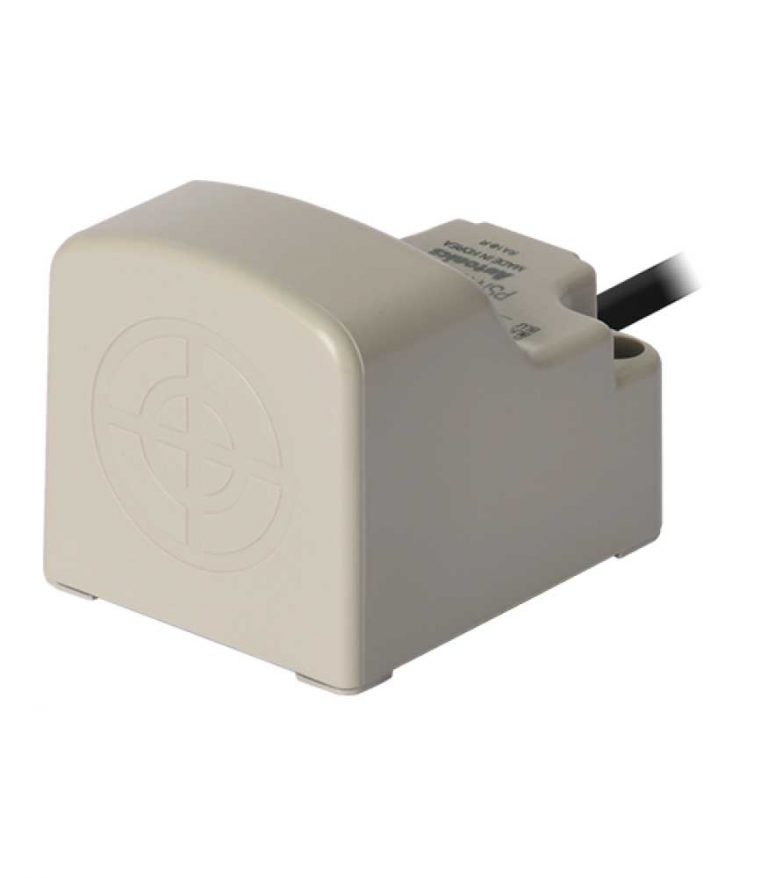

Sensor, Inductive Prox, 40mm Square, 20mm Sensing, PNP NO, 3 Wire, 10-30 VDC
Wire type and power DC 3-wire type 12-24VDC
Sensing side size Frame size 40mm
Sensing distance 20mm
Standard sensing target 60×60×1mm(iron)
Response frequency 100Hz
Current specification Current consumption: Max. 10mA
Control output PNP Normally Open
Sensing type Standard type(front sensing type)
Material Heat-resistant ABS
Protection structure IP67
Approval
Environment_Ambient temperature -25 to 70℃, storage: -30 to 80?
Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Weight Approx. 185g
