Description

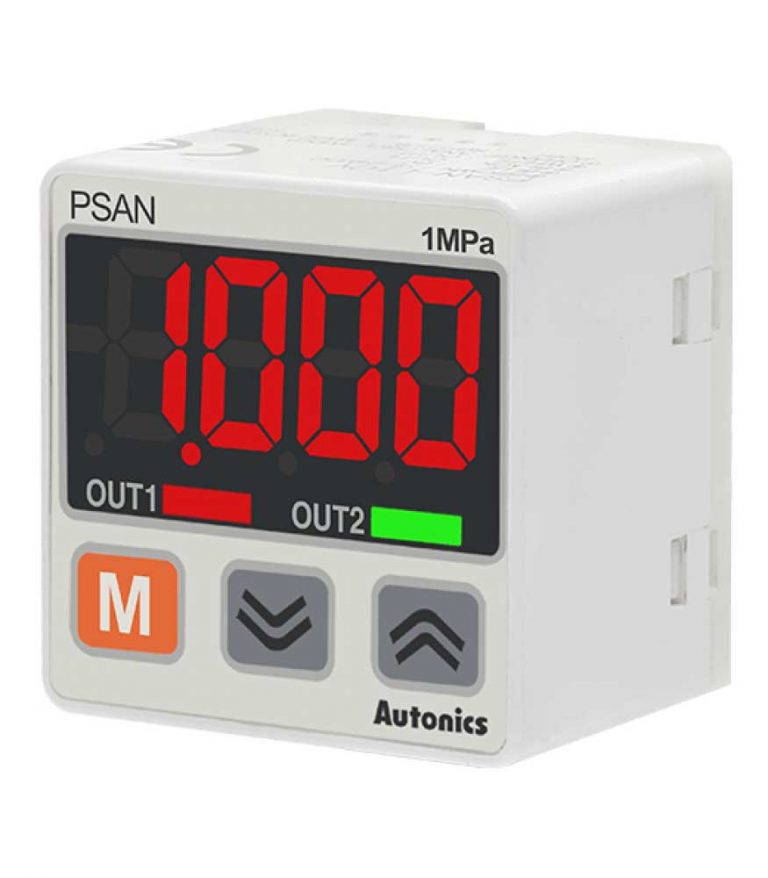

Pressure Sensor, Standard pressure, Connector Type, 0 to 1,000kPa, NPN open collector /1-5 VDC O…
Applicable fluid (Pneumatic type) Air, Non-corrosive gas
Pressure port direction Rear fitting
Pressure port Rc1/8
Connection type Connector type(connector type cable: 2m)
Pressure type Standard pressure
Rated pressure range 0 to 1,000kPa
Display pressure unit MPa, kPa, kgf/cm², bar, psi
Control output_NPN open collector NPN open collector
Option input/output Voltage(1-5VDC ) output
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Voltage output type: Max. 50mA
Current output type: Max. 75mA
Protection structure IP40
Approval
Control output_Hysteresis Min. display interval
Control output_Repeat error ±0.2% F.S. ±Min. display interval
Control output_Response time Selectable 2.5ms, 5ms, 100ms, 500ms, 1000ms
Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH
Material Front, Rear case: Polycarbonate, Pressure port: Nickel Plated Brass
Weight Approx. 165g(approx. 80g)
