Description

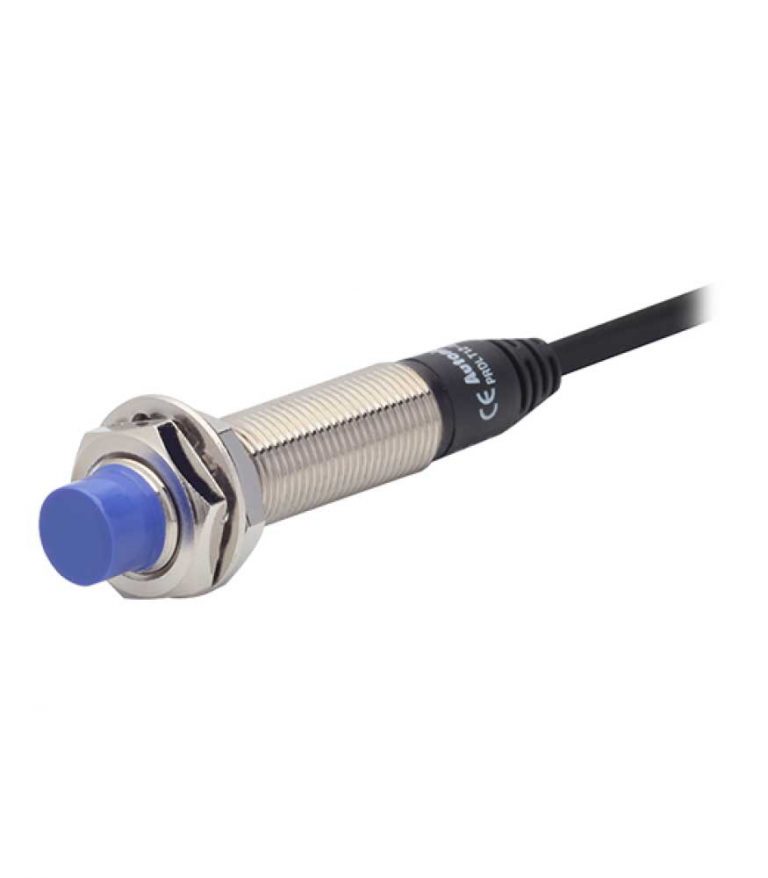

Sensor, Inductive Prox, M12 Round Long, Non shielded, 8mm Sensing, PNP, NO, 3 Wire, 10-30 VDC
Wire type and power DC 3-wire type 12-24VDC
Sensing side diameter M12
Sensing distance 8mm
Installation Non-shield(non-flush)
Standard sensing target 25×25×1mm(iron)
Response frequency 400Hz
Current specification Current consumption: Max. 10mA
Control output PNP Normally Open
Material Brass(nickel plated)
Cable Standard/material Standard cable
Protection structure IP67
Approval
Body length Long body
Environment_Ambient temperature -25 to 70℃, storage: -30 to 80?
Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Residual voltage Max. 1.5V
Weight Approx. 92g
