Description

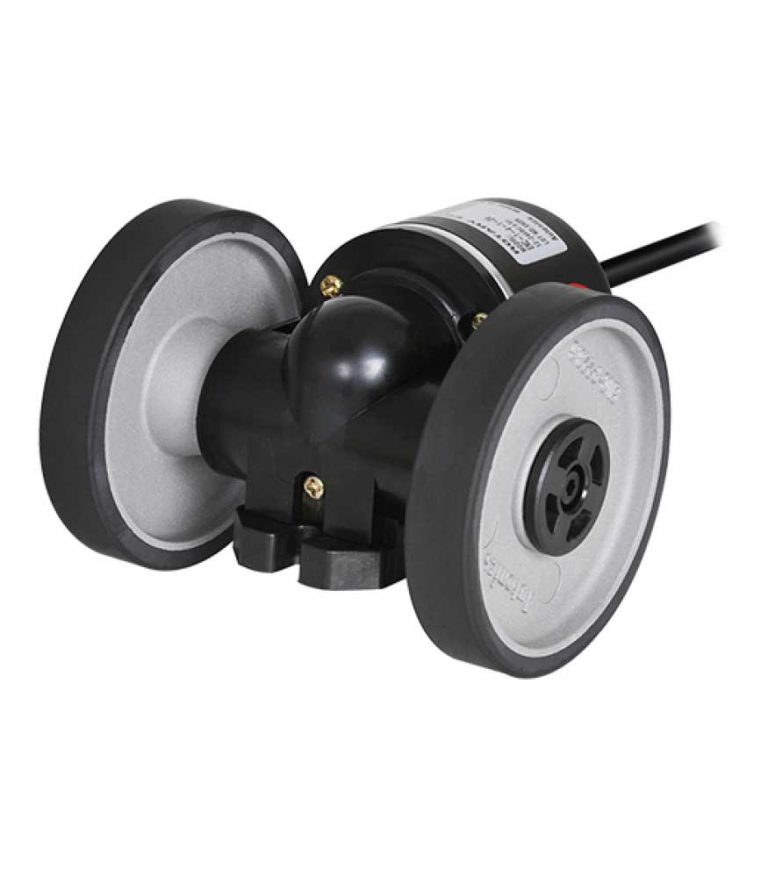

Encoder, Incremental, Wheel Type, 1 Pulse Per 1cm, Totem pole output, 12-24 VDC
Max. response frequency 180kHz
Max. allowable revolution 5000rpm
Output phase A, B
Wheel diameter 250mm
Gear ratio 4:1
Number of pulses 100
Min. measurement unit 1cm
Control output Totem pole
Power supply 12-24VDC ±5%(ripple P-P: max. 5%)
Connection type Axial cable type
Protection structure IP50
Approval
Environment_Ambient temperature -10 to 70℃, storage: -25 to 85℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Weight Approx. 494g
