Description

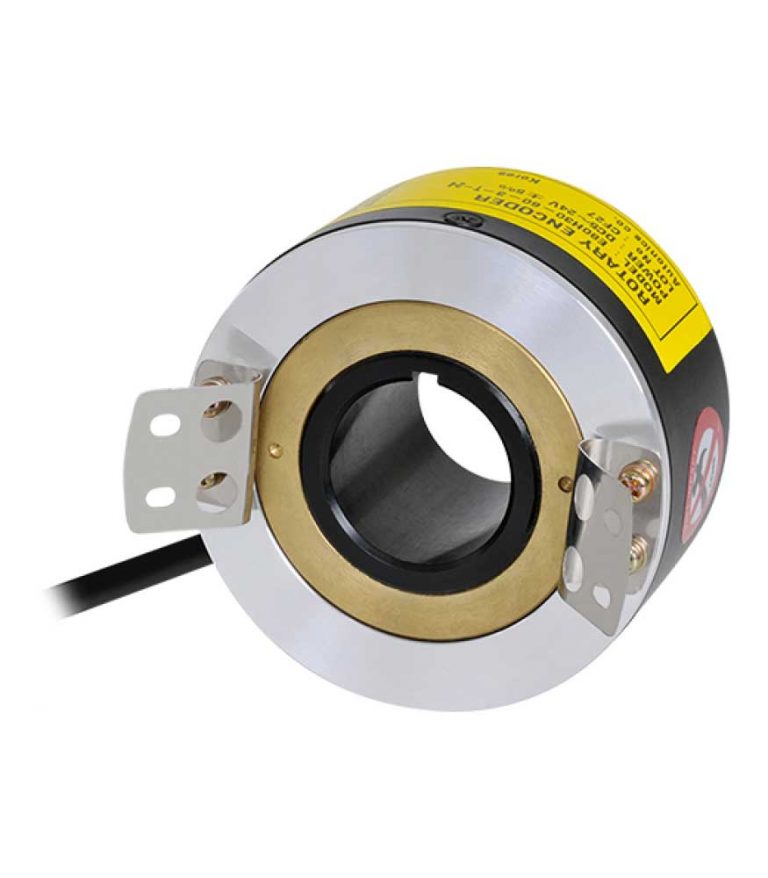

Encoder, Incremental, Ø80mm, 30mm Hollow Shaft, 360 PPR, A,B,Z, Totem pole output, 12-24VDC
Shaft inner diameter : Ø30mm
Maximum Response frequency : 200kHz
Maximum permissible speed : 3600rpm
Starting torque : Max 200gf.cm(Max 0.0196N.m)
Resolution : 360P/R
Control output : totempol
Supply : 12-24VDC ±5%(ripple P-P: Maximum 5%)
Connection type : Side Cable type
Protection structure : IP50
Shaft inner diameter Ø30mm
Maximum Response frequency 200kHz
Maximum permissible speed 3600rpm
Starting torque Max 200gf.cm(Max 0.0196N.m)
Resolution 360P/R
Output phase A, B, Z
Control output totempol
Supply 12-24VDC ±5%(ripple P-P: Max. 5%)
Connection type Lateral Cable type
Protection structure IP50
Ambient temperature -10 – 70℃,storage: -25 – 85℃
Ambient humidity 35-85% RH, storage: 35-90% RH
Bracket with accessory spring
Weight Approx. 560g
