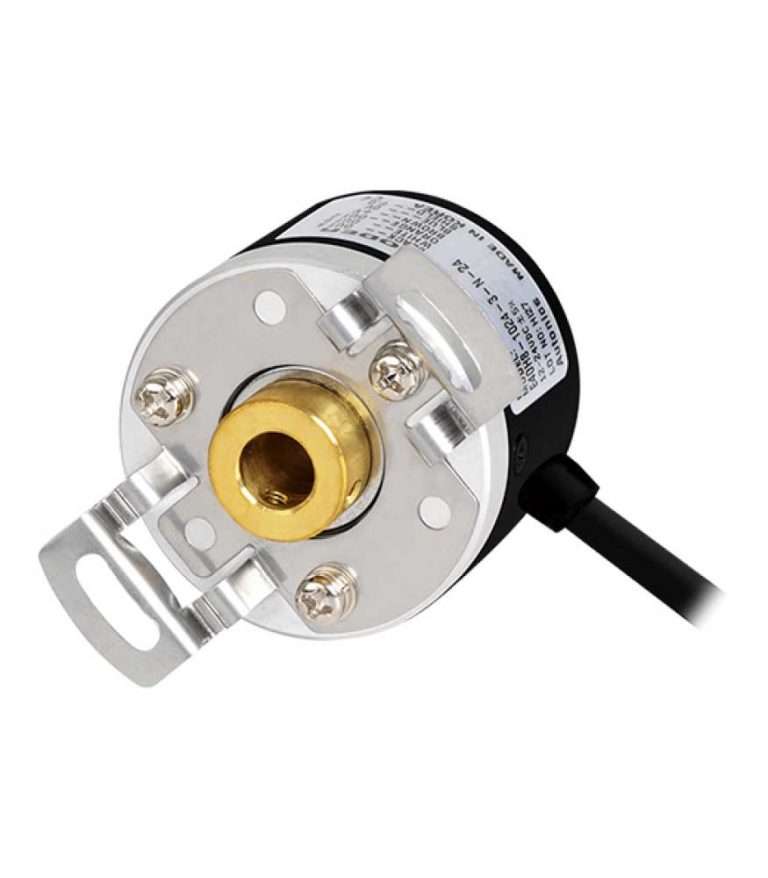

Autonics E40H12-500-3-T-24 Encoder, Incremental

Description

Encoder, Incremental, Ø40mm, 12mm Hollow Shaft, 500 PPR, A,B,Z, Totem pole output, 12-24VDC

PDF

Shaft inner diameter : Ø12mm
Maximum Response frequency : 300kHz
Maximum permissible speed : 5000rpm
Starting torque : Max 50gf.cm(Max 0.0049N.m)
Resolution : 500P/R
Control output : totempol
Supply : 12-24VDC ±5%(ripple P-P: Maximum 5%)
Connection type : Side Cable type
Protection structure : IP50

Shaft inner diameter Ø12mm
Maximum Response frequency 300kHz
Maximum permissible speed 5000rpm
Starting torque Max 50gf.cm(Max 0.0049N.m)
Resolution 500P/R
Output phase A, B, Z
Control output totempol
Supply 12-24VDC ±5%(ripple P-P: Max. 5%)
Connection type Lateral Cable type
Protection structure IP50
Ambient temperature -10 – 70℃,storage: -25 – 85℃
Ambient humidity 35-85% RH, storage: 35-90% RH
Accessory Brackets
Weight Approx. 120g
