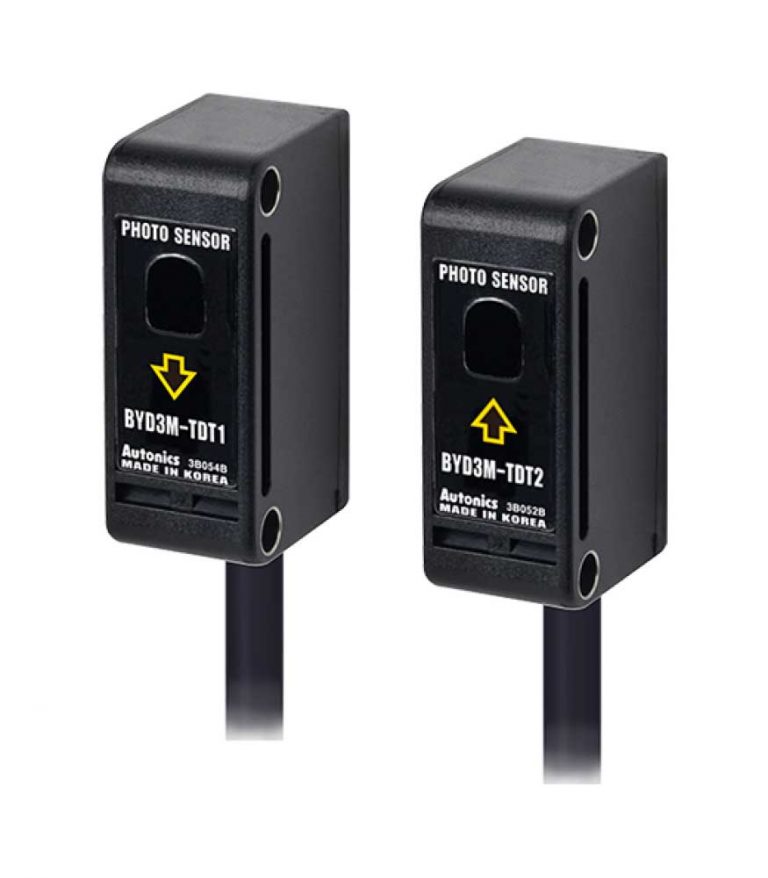

Autonics BYD3M-TDT Sensor, Photo, Through Beam

Sensor, Photo, Through Beam, Dark On, NPN Output, 12-24 VDC

Sensing type Through-beam type
Sensing distance 3m
Sensing target Opaque material of min. Ø6mm
Light source Infrared LED
Response time Max. 1ms
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 30mA
Sensitivity adjustment Fixed
Operation mode Dark ON(option: Light ON)
Control output NPN open collector
Connection type Cable type(Ø3.5, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃
Protection structure IP64
Approval
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case: Acrylonitrile butadiene styrene, Sensing part: Acrylic, Bracket: Steel Plate Cold Commercial, Bolt: Steel Chromium molybdenum, Nut: Steel Chromium molybdenum, Sleeve: Brass, Ni-plate
Accessories Fixing bracket A, M3 Screws, Nuts
Weight Approx. 105g(approx. 80g)
