Description

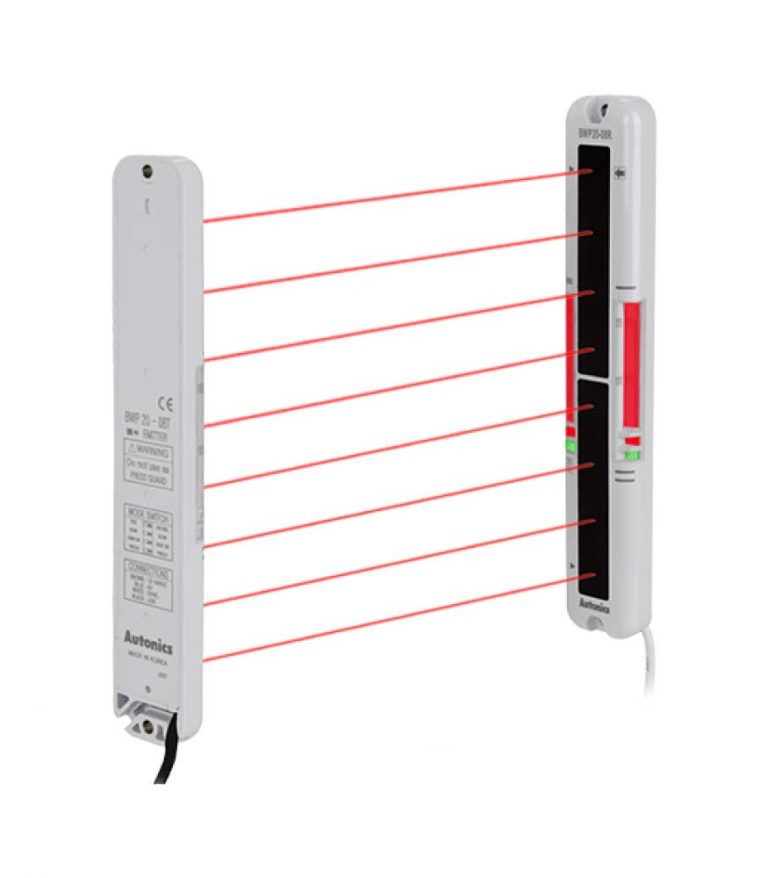

Sensor, Area, Plastic housing PNP open collector output. 16pcs & 20mm pitch optical axis, 300mm …
Sensing type Through-beam type(direct beam)
Sensing distance 0.1 to 5m
Light source Infrared LED(850nm modulated)
Optical axis pitch 20mm
Number of optical axes 16
Sensing height/Total length 300/350mm
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Control output PNP open collector
Operation mode Light ON/Dark ON(set by switch)
Environment_Ambient illumination Sunlight: Max. 10,000lx(receiver illumination)
Environment_Ambient temperature -10 to 55℃, storage: -20 to 60℃
Connection type Cable type(Ø3.5, 3m)
Protection structure IP40
Approval
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Min. sensing target Opaque material of min. Ø30mm
Response time Max. 6ms(frequency B selection is max. 7ms)
Material Case: Polycarbonate/Acrylonitrile butadiene styrene, Sensing part: Polymethyl methacrylate
Cable specification Ø3.5mm, 4-wire, 3m(emitter: Ø3.5mm, 4-wire, 3m)
(AWG 24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm)
Weight Approx. 620g(approx. 360g)
