Description

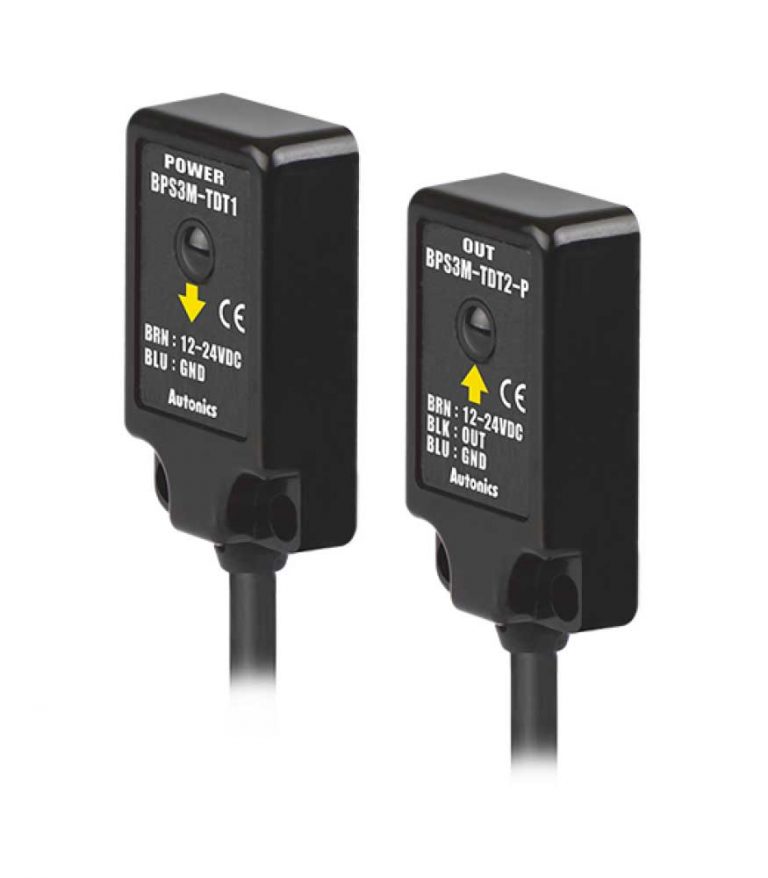

Sensor, Photo, Through Beam, Miniature, Dark On, PNP Output, 12-24 VDC
Sensing type Through-beam type
Sensing distance 3m
Sensing target Opaque material of min. Ø5mm
Light source Infrared LED(850nm)
Response time Max. 1ms
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 20mA
Sensitivity adjustment Sensitivity adjuster
Operation mode Dark ON
Control output PNP open collector
Connection type Cable type(Ø3, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -25 to 65℃, storage: -25 to 70℃
Protection structure IP67
Approval
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 90% RH
Material Case: Polycarbonate, Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum
Weight Approx. 66g
