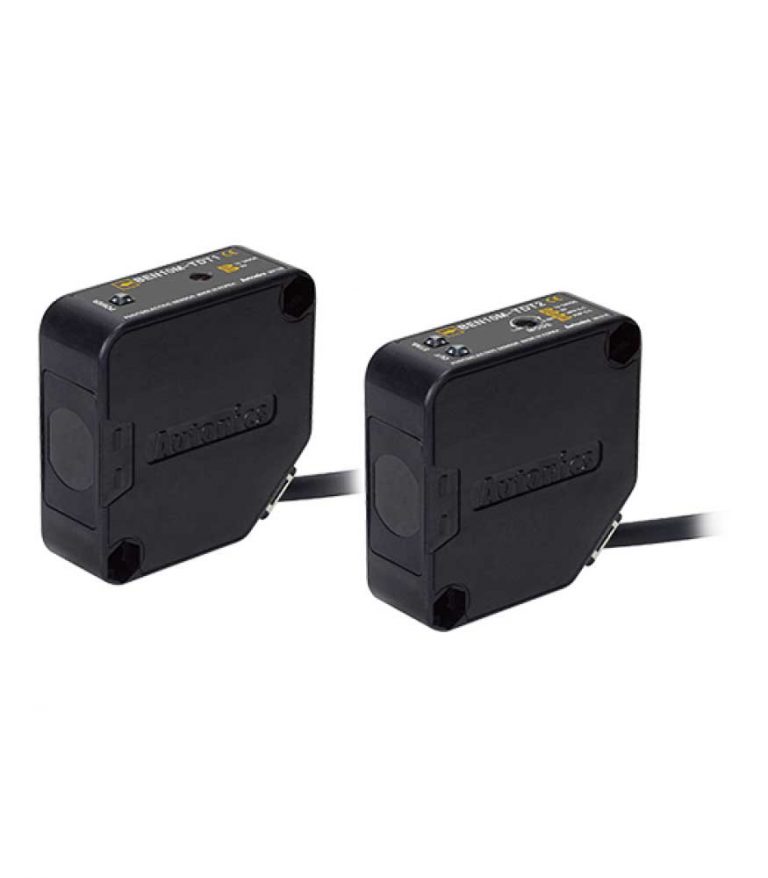

Autonics BEN10M-TDT Sensor, Photo, Through Beam

Sensor, Photo, Through Beam, 10M Sensing distance, Light & Dark On, NPN & PNP Output, 12-24 VDC

Sensing type Through-beam type
Sensing distance 10m
Sensing target Opaque material of min. Ø16mm
Light source Infrared LED(850nm)
Response time Max. 1ms
Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption Emitter/Receiver: Max. 50mA
Operation mode Light ON/Dark ON(set by switch)
Control output NPN, PNP open collector simultaneous output
Connection type Cable type(Ø5, 2m)
Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature -20 to 65℃, storage: -25 to 70℃
Protection structure IP50
Approval
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material Case, Case cover: Heat resistant Acrylonitrile butadiene styrene,
Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate),
Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,
Nut: steel chromium molybden
Accessories_Common Adjuster driver, Fixing bracket, Bolts, Nuts
Weight Approx. 342g
