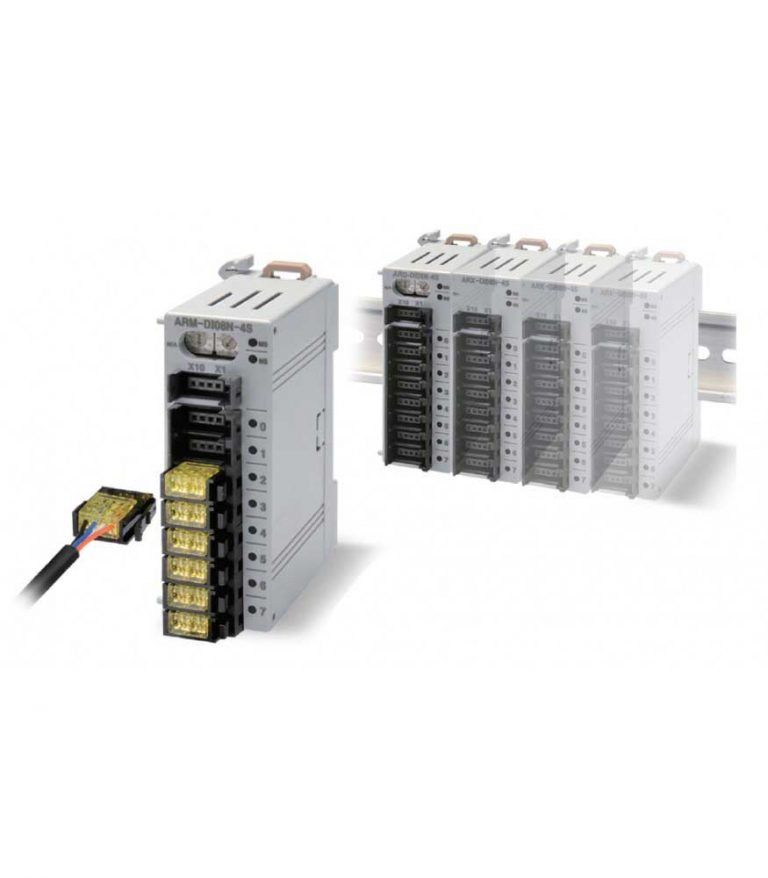

Autonics ARM-DI08P-4S Remote I/O, Modbus RTU RS 485

Remote I/O, Modbus RTU RS 485, DC PNP input 8 points, Control input : 10 – 28VDC, 10mA / contac…

Network Modbus
Type Digital
Number Of I/Os_Input 8-point (PNP)
I/O specification Voltage: 10-28VDC
Current: 10mA/point(sensor supplied current: 150mA/point)
Module type Basic unit
Power supply 24VDC
Protection structure IP20
Approval
Insulation type I/O and inner circuit: photocoupler insulation
Modbus to internal bus and inner circuit: insulation
Unit power: non-insulation
Material Front case: PC, Body case: PC
Environment_Ambient temperature -10 to 55℃, storage: -25 to 75?
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 123.3g (approx. 61.8g)
