Description

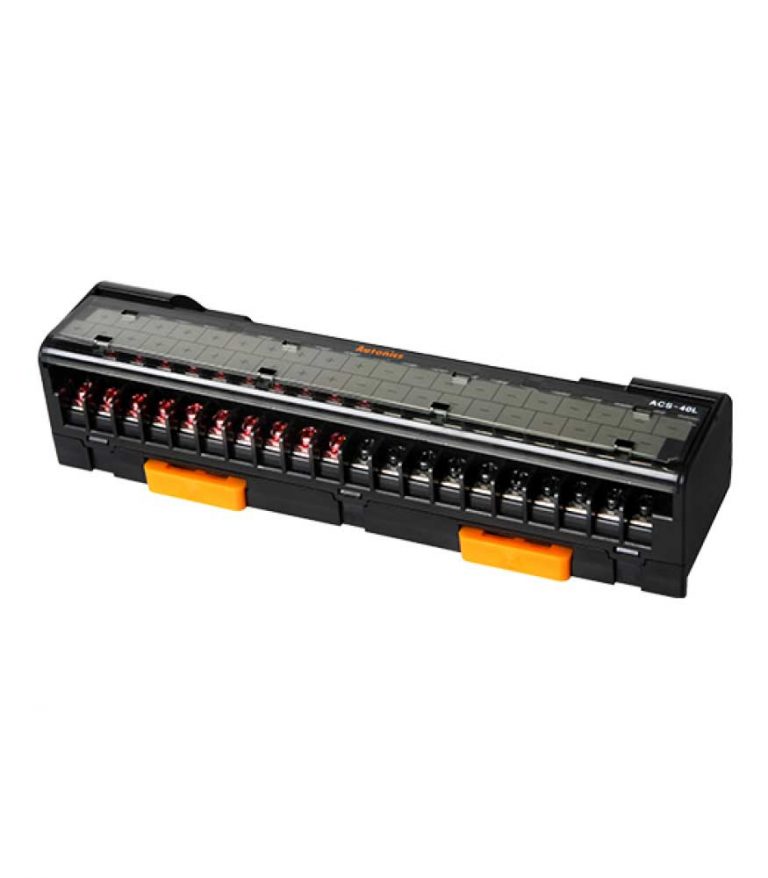

Common Terminal Block, 40Terminals, Left+COM,Right-COM, 125VDC/AC, Terminal Pitch 7mm, Din Rail
Rated voltage ?125VDC ⎓, 125VAC~ 50/60Hz
Rated current Max. 10A
Common type Left +COM, Right -COM
Number of terminal 40 EA
Terminal pitch 7.0mm
Applicable cable AWG22-16(0.30 to 1.25mm²)
Insulation resistance ≥1,000MΩ(at 500VDC megger)
Dielectric strength 600VAC 50/60Hz for 1 minute
Environment_Ambient temperature -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material CASE: MPPO, TERMINAL PIN: Brass
Approval
Weight Approx. 157g(approx. 115g)
