Description

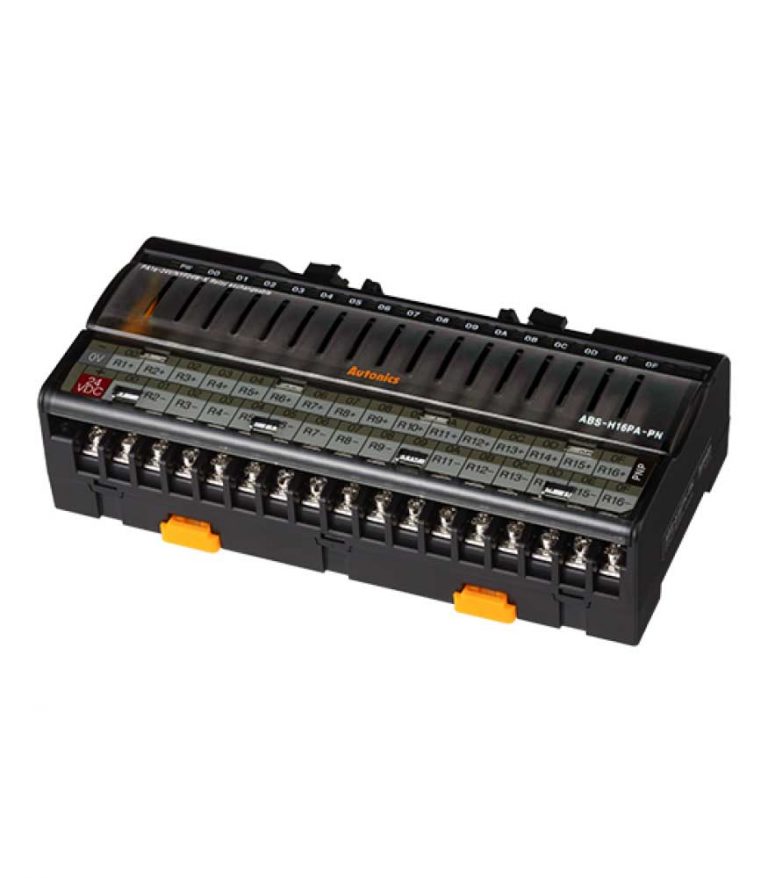

Relay Terminal Block, Hirose connector, 16Relays(250VCA 3A, 30VDC 3A), Matsushita(Panasonic APAN3124), PNP( COM-), 24VDC
Rated voltage 24VDC ⎓ ±10%
Rated load voltage & current 250VAC~ 3A, 30VDC ⎓ 3A
Current consumption ?8mA/?13mA
Applied relay APAN3124 [MATSUSHITA(Panasonic)]
Number of relay points 16-point
Number of connector pins 20-pin
Indicator Power indicator: Red LED, operation and disconnection indicator: Blue LED
Applicable cable AWG22-16(0.30 to 1.25mm²)
Insulation resistance ≥1,000MΩ(at 500VDC megger)
Dielectric strength_Between coil-contacts 3,000VAC 50/60Hz for 1 minute
Dielectric strength_Between same contacts 1,000VAC 50/60Hz for 1 minute
Environment_Ambient temperature -15 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Material CASE: MPPO, BASE: Polyamide 66 (G25%), TERMINAL PIN: Brass
Accessories Jumper bar: 2(Model:JB-7.62-08)
Approval
Weight Approx. 307g(approx. 224g)
